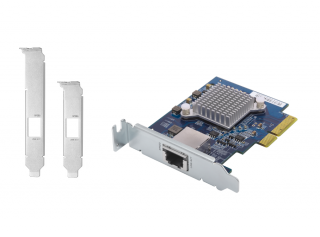

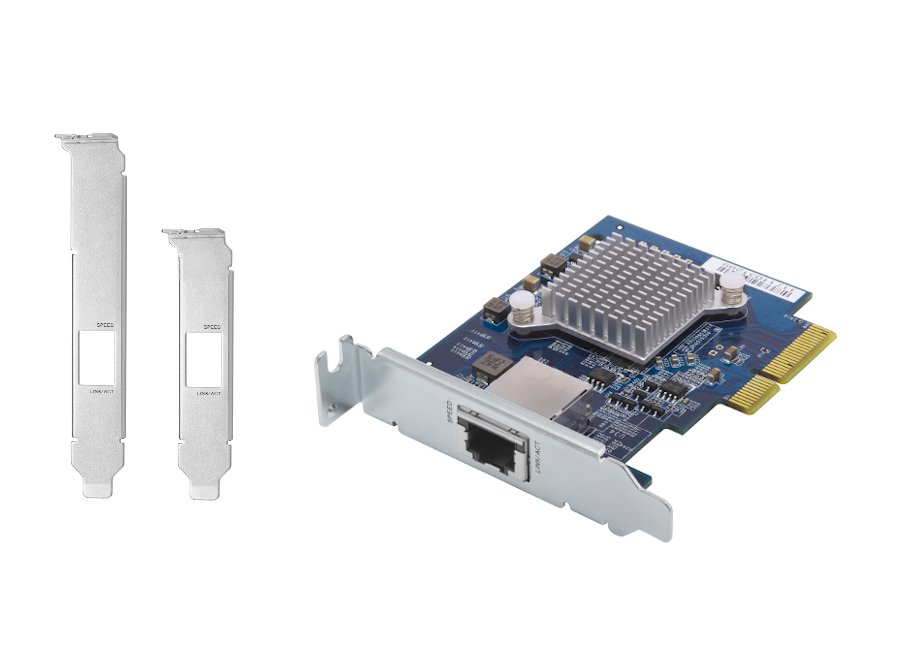

PCIe 10 GbE Ethernet Card Single Port w/ Full & Low Profile Brackets (TPE-10GBEPCIE)

PCIe 10 GbE Ethernet Card Single Port w/ Full & Low Profile Brackets (TPE-10GBEPCIE)
Upgrade your NAS, mini server, or PC with a single-port, 5-speed 10GBASE-T network expansion card. It'll accommodate all your high-speed data transfer needs and satisfy any bandwidth-hungry applications. The 10 GbE network expansion card delivers speeds of up to 10 Gbps - 10x faster than standard Gigabit Ethernet - to greatly boost data transfer performance.

  • Great for those with high bandwidth needs: From video production to file sharing

  • PCIe 3.0 x4 interface for maximum transfer speeds

  • Support for most popular and libre (free) distributions

  • Not dependent on NDISWrapper or other OS-loaded binary blobs / proprietary drivers

  • Passive heat sink (fanless): Silent and efficient!

  • Works great with traditional ethernet networks: 5-speed 10GBASE-T RJ45 connector

  • Current LAN cables can already support speeds > 1Gbps: CAT 5e can support up to 5G

  • Looking for 10Gbps? Pick up some CAT 6, 6A, or CAT 7 Cable

  • Curious how our 10 GbE card compares to other products? Check out this real world speed test.

  • First time installing a PCIe card? Check out the PCIe card install demo, penguin style


Fast shipping:

Most customers will receive this item within 1-5 business days when selecting our "Standard Shipping" option or our USPS shipping option if within the US. Most others in populated regions will generally get it within 6-10 business days.

(* large quantities may take longer to deliver)
Category Specification
Chipset Aquantia AQC107
Number of Ports 1
Connector NBASE-T (RJ45)
PCIe and Lanes PCIe 3.0 x4
Transmission Rates 10Gbps/5Gbps/2.5Gbps/1Gbps/100Mbps
IEEE Standards IEEE 802.3an
IEEE 802.3bz
Brackets Included Low-profile & full-height
Supported NAS Distributions OpenMediaVault
Supported ThinkPenguin NAS Models with PCIe slot(s) (1 free slot required)
Port and Cable RJ-45; over CAT-6 class cable
Package Contents 1 x Network card
2 x Brackets
Support with Most major recent distributions; see list to left
Interface PCIe 3.0 x4 interface or higher for maximum transfer speeds
Supported Kernels Linux & Linux-libre 4.15+
Compatible With Linux, Windows® 10, 8.1, 8, 7 (32/64 bit)


Have questions?
E-mail support or call us at: 1-888-39-THINK (84465)
Partial List Of Supported Releases:

Trisquel 9, 10, 11
Parabola GNU/Linux 2018.06.04, 2018.06.11, 2019.03.10, 2020.01.18, 2020.01.22, 2020.08.02, 2020.08.03, 2020.09, 2021.08.11, 2022.04, 2024.02
Slint 15.0
Slackware 15.0
Ubuntu 18.04, 18.10, 19.04, 19.10, 20.04, 20.10, 21.04, 21.10, 22.04, 22.10, 23.04, 23.10, 24.04
Lubuntu 18.04, 18.10, 19.04, 19.10, 20.04, 20.10, 21.04, 21.10, 22.04, 22.10, 23.04, 23.10, 24.04
Kubuntu 18.04, 18.10, 19.04, 19.10, 20.04, 20.10, 21.04, 21.10, 22.04, 22.10, 23.04, 23.10, 24.04
Peppermint Linux OS 10, 10 Respin, 10 Respin 20191210, 2022-02-02, 2022-10-02, 2022-11-07, 2022-11-28, 2023-07-01, 2023-10-15
Linux Mint 19, 19.1, 19.2, 19.3, 20, 20.1, 20.2, 20.3, 21, 21.1, 21.2, 21.2 Edge, 21.3, 21.3 Edge
Linux Mint Debian Edition (LMDE) 4, 5, 6
Debian 10, 11, 12
elementary OS 5.0, 5.1, 5.1.2, 5.1.3, 5.1.4, 5.1.5, 5.1.6, 5.1.7, 6, 6.1, 7, 7.1
ZorinOS 15, 15.1, 15.2, 15.3, 16, 16.1, 16.2, 16.3, 17, 17.1
Fedora 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40
Rocky Linux 9 Series 9.0, 9.1, 9.2, 9.3
Rocky Linux 8 Series 8.4, 8.5, 8.6, 8.7, 8.8, 8.9
AlmaLinux 9 Series 9.0, 9.1, 9.2, 9.3
AlmaLinux 8 Series 8.3, 8.4, 8.5, 8.6, 8.7, 8.8, 8.9
Red Hat Enterprise Linux (RHEL) 9 Series 9.0, 9.1, 9.2, 9.3
Red Hat Enterprise Linux (RHEL) 8 Series 8, 8.1, 8.2, 8.3, 8.4, 8.5, 8.6, 8.7, 8.8, 8.9
CentOS Stream 8, 9
CentOS 8 Series 8, 8.1, 8.2, 8.3, (discontinued)
OpenSuSE 15.2, 15.3, 15.4, 15.5
PCLinuxOS 2019.08, 2019.10, 2019.11, 2019.12, 2020.01, 2020.02, 2020.03, 2020.05, 2020.08, 2020.10, 2020.1015, 2021.0205, 2021.0215, 2021.08, 2021.11, 2022.01.10, 2022.04.10, 2022.04.20, 2022.07.10, 2022.11.20, 2022.11.30, 2022.12, 2023.05, 2023.07, 2023.08, 2024.04
Mageia 7, 7.1, 8, 9
Tails 4.0, 4.1, 4.1.1, 4.2, 4.2.2, 4.3, 4.4, 4.4.1, 4.5, 4.6, 4.7, 4.8, 4.9, 4.10, 4.11, 4.12, 4.13, 4.14, 4.15, 4.15.1, 4.16, 4.17, 4.18, 4.19, 4.20, 4.21, 4.22, 4.23, 4.24, 4.25, 4.26, 4.27, 4.28, 4.29, 5.0, 5.1, 5.1.1, 5.2, 5.3, 5.3.1, 5.4, 5.5, 5.6, 5.7, 5.8, 5.9, 5.10, 5.11, 5.12, 5.13, 5.14, 5.15.1, 5.16, 5.16.1, 5.17, 5.18, 5.19, 5.19.1, 5.20, 5.21, 5.22, 6.0, 6.1, 6.2
Arch 2019.12.1, 2020.01.1, 2020.02.1, 2020.03.1, 2020.04.1, 2020.05.1, 2020.06.1, 2020.07.1, 2020.08.1, 2020.09.1, 2020.10.1, 2020.11.1, 2020.12.1, 2021.01.1, 2021.02.1, 2021.03.1, 2021.04.1, 2021.05.1, 2021.06.1, 2021.07.1, 2021.08.1, 2021.09.1, 2021.10.1, 2021.11.1, 2021.12.1, 2022.01.1, 2022.02.1, 2022.03.1, 2022.04.1, 2022.05.1, 2022.06.1, 2022.07.1, 2022.08.1, 2022.09.1, 2022.10.1, 2022.11.1, 2022.12.1, 2023.01.1, 2023.02.1, 2023.03.1, 2023.04.1, 2023.05.1, 2023.06.1, 2023.07.1, 2023.08.1, 2023.09.1, 2023.10.1, 2023.11.1, 2023.12.1, 2024.01.1, 2024.02.1, 2024.03.1, 2024.04.1
Manjaro 18.0, 18.1.0, 19.0, 20.0, 20.1, 20.2, 20.2.1, 21.0, 21.0.1, 21.0.2, 21.0.3, 21.0.4, 21.0.5, 21.0.6, 21.0.7, 21.1.0, 21.1.1, 21.1.2, 21.1.3, 21.1.4, 21.1.5, 21.1.6, 21.2.0, 21.2.1, 21.2.2, 21.2.3, 21.2.4, 21.2.5, 21.2.6, 21.3.1, 21.3.2, 21.3.3, 21.3.4, 21.3.5, 21.3.6, 21.3.7, 22.0, 22.0.1, 22.0.2, 22.0.3, 22.0.4, 22.0.5, 22.1.0, 22.1.1, 22.1.2, 22.1.3, 23.0, 23.0.1, 23.0.2, 23.0.3, 23.0.4, 23.1.0, 23.1.1, 23.1.2, 23.1.3, 23.1.4


All recently released distributions are compatible.
