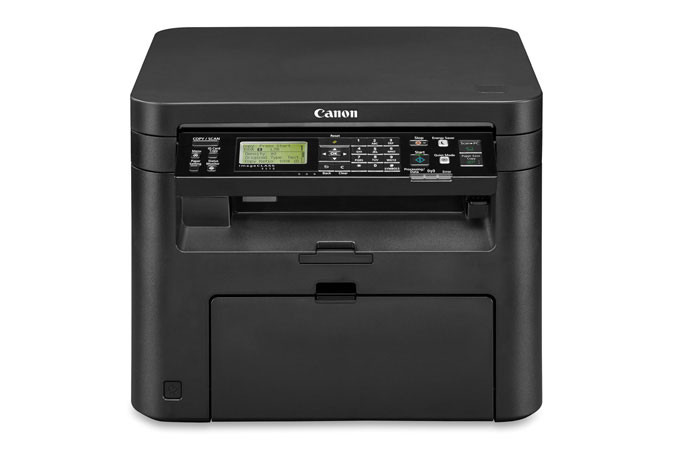

Canon imageCLASS B&W Laser All-in-One Printer GNU/Linux Edition (TPE-CANLSR570)
Give your business the efficiency it deserves with a Canon imageCLASS printer offering feature-rich capabilities in a high quality, reliable copier and scanner that is ideal for any office environment.
Your professional quality documents are printed at speeds of up to 28 pages per minute in black and white. A laser all-in-one printer will save you time, paper, and related costs over traditional inkjet all-in-one printers.
This all-one-printer ships with support for PCL 5e/6 (similar to postscript) enabling printing support from near any operating system, distribution, or release via using a standard driver.
This model can be hooked up to one or many computers with support for 802.11 wireless technology, and a physical ethernet port, or a single computer using a USB cable.
Unlike most all-in-one laser printers on the market this Canon imageCLASS printer doesn't depend on proprietary and problematic drivers or OS-loaded firmware components. For scanning a back end sane-pixma driver component is utilized. This is a clone of the original Canon driver protocol, but with a complete set of source code available for optimal integration and support by your favorite GNU/Linux distribution. This is a production ready driver which is now being shipped in current releases of your favorite distribution for a seamless works out-of-the box experience. For some popular older long term support distributions we have documentation on how to manually update drivers to support both printing and scanning.
- Paper capacity allows for 250-sheets in the standard cassette and one-sheet in the multipurpose tray
- Print at speeds of up to 28 pages per minute
- Easy to setup: The printer is supported by a stock hpij PCL driver included in most distributions
- Upgrade with ease: Continued support & no need to reload drivers manually with each upgrade
- Support for most popular and libre (free) Linux distributions
- Not dependent on OS-loaded binary blobs, or OS-loaded proprietary drivers-firmware
|
Category
|
Specification
|
|
Print Speed
|
Up to 28 Pages Per Minute (Letter Size)
|
|
Print Memory
|
512 MB (Shared)
|
|
First Print Out Time
|
Approximately 6 Seconds (Letter Size)
|
|
Functions
|
Print, Scan, Copy
|
|
Duplex Functions
|
Print
|
|
Wireless / WiFi Direct Connection
|
Yes, Wireless and WiFi Direct Connection
|
|
Paper Handling
|
250-Sheet Standard Cassette, 1-Sheet Multipurpose Tray
|
|
Monthly Duty Cycle / Recommended Monthly Print Volume (RMPV)
|
Up to 15,000 Pages Per Month / 750-3,000 RMPV
|
|
Toner and Yield
|
Canon Toner, Cartridge 137 Black (2,400 Sheets, ISO / IEC Standard)
|
|
Minimum canon-pixma version (driver)
|
1.0.27-git (note: 1.0.27 will not work, requires a newer version available sane-project git repository or other binary package repositories, see support and documentation for details)
|
|
Print Resolution
|
Up to 600 x 600 dpi
|
|
Maximum Print Size
|
Up to Legal (8.5 x 14 inches) |
|
Copy Type
|
Monochrome Laser
|
|
Copy Speed
|
Up to 28 ppm (letter, 1-sided), Up to 16 ppm (letter, 2-sided)
|
|
Original Type
|
Text/Photo, Text, Photo
|
|
Halftones
|
256 Levels
|
|
Warm-up Time
|
13.5 seconds or less from power on
|
|
First Copy Time
|
9 seconds or less (letter)
|
|
Recovery Time
|
Approximately 2 seconds
|
|
Maximum Number of Copies
|
Up to 999 copies
|
|
Reduction/Enlargement
|
25-400% in 1% increments
|
|
Copy Size
|
Platen: Up to 8.5 x 11
|
|
Copy Features
|
Memory Sort, 2 on 1, 4 on 1, ID Card Copy
|
|
Scan Type
|
Color Contact Image Sensor (CIS)
|
|
Color Depth
|
24-bit
|
|
Scan Resolution
|
Up to 600 x 600 dpi (optical, note: while this model can scan at up to 600dpi there is currently a bug which causes vertical lines to appear at that resolution.. a bug report has been filed upstream... but no fix is yet available)
|
|
Scan Size
|
Platen: Up to Letter
|
|
Duplex Scan
|
No
|
|
Compatibility
|
Simple Scan, Xsane, etc, TWAIN, WIA, ICA
|
|
Output File Formats
|
TIFF/JPEG/PDF/Compact PDF/Searchable PDF |
|
Scan Features
|
USB and Network
|
|
Paper Handling Specifications
Standard Paper Source(s)
|
250-sheet cassette plus 1-sheet multipurpose tray
|
|
Paper Output
|
100 sheets (face down)
|
|
Paper Weight
|
16-43 lb. (bond, plain paper)
|
|
Media Sizes |
A4, B5, A5, Letter, Legal, Executive, Statement
|
|
Media Types
|
Plain, Color, Recycled, Heavy, Bond, Label, Envelope
|
|
Envelope Capacity
|
1 (multipurpose tray)
|
|
Envelope Types
|
Com 10, Monarch, DL, C5
|
|
Standard Interface(s)
|
USB Device 2.0 Hi-Speed, 10/100 Base-T Ethernet (network), Wi-Fi® 802.11 b/g/n
|
|
WiFi Access Mode
|
Infrastructure Mode, WPS Easy Set Up, Wi-Fi® Direct Connection
|
|
WiFi Authentication Methods
|
WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES)
|
|
WiFi Encryption Modes
|
WEP 64/128 bit, TKIP, AES
|
|
WPS Easy Setup Support Methods
|
Push-button mode, PIN code mode
|
|
Network Functions
|
Print, Scan
|
|
Print Protocols
|
LPD, RAW, WSD-Print (IPv4,IPv6), IPP, IPPS
|
|
TCP/IP Set of Application Services
|
Bonjour(mDNS), DHCP, BOOTP, RARP, Auto IP (IPv4), DHCPv6 (IPv6)
|
|
Network Management Protocols
|
SNMPv1/SNMPv3 (IPv4,IPv6), HTTP/HTTPS, SNTP
|
|
Power Consumption
|
Approx: Operation: 480 W, Standby: 4.1 W, Energy Saver: 1.2 W (USB), 1.3 W (wired), 2 W (wireless)
|
|
Package Weight / Dimensions
|
37.4 lbs / 15.4 inches (W) x 14.6 inches (D) x 12.3 inches (H)
|
|
Cartridge Type
|
Cartridge 137 (Yields approximately 2,400 pages), Single Cartridge System
*Yields based on ISO/IEC Standard
|
|
LCD Display
|
5-Line, Tiltable LCD
|
|
Duty Cycle
|
Up to 15,000 pages
|
|
Security
|
IP/MAC address filtering
|
|
Other Features:
|
Languages: English, Japanese, French, Spanish, German, Italian, Portuguese, Simplified Chinese, Traditional Chinese, Korean
Recommended Monthly Print Volume: 750-3,000 pages
Operating Temperature: 50°-86° F
Operating Humidity: 20 - 80% RH (no condensation)
|
|
Compatible with
|
Linux (recent releases), Windows® 10, 8.1, 8, 7, Windows Vista®,Windows Server® 2016, 2012, 2012 R2, 2008, 2008 R2, Mac OS 10.7.5 & up
|
Have questions?
E-mail support or call us at: 1-888-39-THINK (84465)
|
Partial List Of Supported Releases:
Trisquel 8, 9, 10, 11PrawnOS 1.00, 1.01, 1.02, 1.03, 1.1, 1.2, 1.3, 1.3.1, 1.3.2Ubuntu 18.04, 18.10, 19.04, 19.10, 20.04, 20.10, 21.04, 21.10, 22.04, 22.10, 23.04, 23.10Lubuntu 18.04, 18.10, 19.04, 19.10, 20.04, 20.10, 21.04, 21.10, 22.04, 22.10, 23.04, 23.10Kubuntu 18.04, 18.10, 19.04, 19.10, 20.04, 20.10, 21.04, 21.10, 22.04, 22.10, 23.04, 23.10Linux Mint 19, 19.1, 19.2, 19.3, 20, 20.1, 20.2, 20.3, 21, 21.1, 21.2, 21.2 Edge, 21.3, 21.3 EdgeLinux Mint Debian Edition (LMDE) 4, 5, 6ZorinOS 15, 15.1, 15.2, 15.3, 16, 16.1, 16.2, 16.3, 17, 17.1Debian 10, 11, 12Manjaro 20.2, 20.2.1, 21.0, 21.0.1, 21.0.2, 21.0.3, 21.0.4, 21.0.5, 21.0.6, 21.0.7, 21.1.0, 21.1.1, 21.1.2, 21.1.3, 21.1.4, 21.1.5, 21.1.6, 21.2.0, 21.2.1, 21.2.2, 21.2.3, 21.2.4, 21.2.5, 21.2.6, 21.3.1, 21.3.2, 21.3.3, 21.3.4, 21.3.5, 21.3.6, 21.3.7, 22.0, 22.0.1, 22.0.2, 22.0.3, 22.0.4, 22.0.5, 22.1.0, 22.1.1, 22.1.2, 22.1.3, 23.0, 23.0.1, 23.0.2, 23.0.3, 23.0.4, 23.1.0, 23.1.1, 23.1.2, 23.1.3
This model has out of the box support for all core functionality (printing, scanning, and copying) on more recently released distributions (Ubuntu 19.04+, Debian 11+, Trisquel 10+, etc). Older releases that may still be supported such as Ubuntu 18.04, Debian 9 & 10, etc may require manual updating of drivers or manual selection of the printer when running the add printer wizard.
For some of the most popular older distributions that are still supported we have detailed directions on our web site for getting the printer to work. This in some instances requires manually installing the sane-pixma driver from a third party repository. This will enable support for scanning using the printer. There are also directions for starting the add printer wizard to add the printer such that you can print with it as well. If you have any questions about your favorite distribution and support contact us with the name of your distribution, version of the distribution, and product you are looking to buy.
Notes: Includes toner cartridges (starter), power cable, and all-in-one printer. USB and ethernet cables sold separately.
We are unable to ship this item to the following countries and/or regions: Europe, Canada, South America, Australia, Africa, Asia, Mexico, Russia, Greenland, Iceland, New Zealand, Japan, India, Pakistan, Iran, the Pacific Islands, any other islands, and the middle east.
|
