PCIe eSATA / SATA 6Gbps Controller Card w/ Full & Lowprofile Brackets (TPE-PCIESATA)

PCIe eSATA / SATA 6Gbps Controller Card w/ Full & Lowprofile Brackets (TPE-PCIESATA) PCIe eSATA / SATA 6Gbps Controller Card w/ Full & Lowprofile Brackets (TPE-PCIESATA)
Add 2 external or internal SATA 6 Gbps ports to a computer, through a PCIE slot.

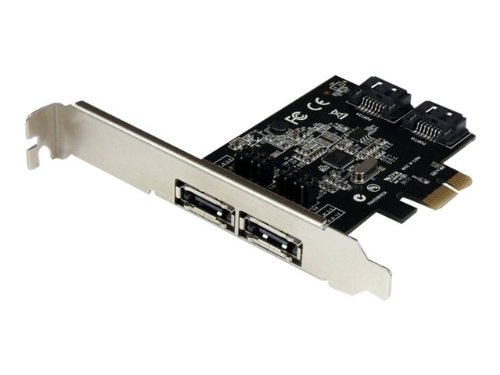

The TPE-PCIESATA PCI Express SATA III Controller Card (6 Gbps) gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed.

The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected over a single cable when necessary to maximize the number of SATA device connections while reducing the amount of cabling required.

The card is fully compliant with the SATA revision 3.0 specification (up to 6Gbps of data bandwidth), enabling you to utilize the speeds of high performance hard drives and Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray).

  • 2 x SATA 6.0Gb/s Internal Connectors

  • 2 x eSATA External Connectors

  • Support for most popular and libre (free) distributions

  • Not dependent on NDISWrapper, binary blobs, or proprietary drivers-firmware

  • Vetted and certified by the Free Software Foundation under the RYF program

  • First time installing a PCIe card? Check out the PCIe card install demo, penguin style

  • See our additional documentation here sata card info, penguin style


Fast shipping:

Most customers will receive this item within 1-5 business days when selecting our "Standard Shipping" option or our USPS shipping option if within the US. Most others in populated regions will generally get it within 6-10 business days.

(* large quantities may take longer to deliver)
Category Specification
Chipset ASMEDIA ASM1061
Supports SATA III (which can support up to 6Gbps of bandwidth)
External Connectors 2 x eSATA
Internal Connectors 2 x SATA 6.0Gb/s
Interface PCI-Express x1
Form Factor Full & Low Profile Brackets Included
LBA support 48-bit
Port Multiplier Yes
Support for SATA-based optical drives (CD/DVD/BD) Yes
Supports Native Command Queuing (NCQ) and ATA/ ATAPI commands
Compatible With Windows XP(32/64-bit)/ Server 2003(32/64-bit)/ Server 2008 R2/ Vista(32/64-bit)/ 7(32/64-bit)/ 8 (32/64-bit)


Have questions?
E-mail support or call us at: 1-888-39-THINK (84465)


Partial List Of Supported Releases:

Trisquel 3.5, 4.01, 4.5, 5, 5.5, 6, 6.01, 7, 8, 9, 10, 11
Slint 14.2, 15.0
Slackware 13.1, 13.37, 14, 14.1, 14.2, 15.0
Ubuntu 9.04, 9.10, 10.04, 10.10, 11.04, 11.10, 12.04, 12.10, 13.04, 13.10, 14.04, 14.10, 15.04, 15.10, 16.04, 16.10, 17.04, 17.10, 18.04, 18.10, 19.04, 19.10, 20.04, 20.10, 21.04, 21.10, 22.04, 22.10, 23.04, 23.10
Lubuntu 9.04, 9.10, 10.04, 10.10, 11.04, 11.10, 12.04, 12.10, 13.04, 13.10, 14.04, 14.10, 15.04, 15.10, 16.04, 16.10, 17.04, 17.10, 18.04, 18.10, 19.04, 19.10, 20.04, 20.10, 21.04, 21.10, 22.04, 22.10, 23.04, 23.10
Peppermint Linux OS 1, 2, 3, 4, 5, 6, 7, 8, 9, 9 Respin-2, 10, 10 Respin, 10 Respin 20191210, 2022-02-02, 2022-10-02, 2022-11-07, 2022-11-28, 2023-07-01, 2023-10-15
Kubuntu 9.04, 9.10, 10.04, 10.10, 11.04, 11.10, 12.04, 12.10, 13.04, 13.10, 14.04, 14.10, 15.04, 15.10, 16.04, 16.10, 17.04, 17.10, 18.04, 18.10, 19.04, 19.10, 20.04, 20.10, 21.04, 21.10, 22.04, 22.10, 23.04, 23.10
Debian 6, 7, 8, 9, 10, 11, 12
elementary OS .1, .2, .3, .3.1, .3.2, .4, .4.1, 5.0, 5.1, 5.1.2, 5.1.3, 5.1.4, 5.1.5, 5.1.6, 5.1.7, 6, 6.1, 7, 7.1
LXLE 12.04, 12.04.3, 12.04.4, 14.04, discontinued
Linux Mint 7, 8, 9, 10, 11, 12, 13, 14, 14.1, 15, 16, 17, 17.1, 17.2, 17.3, 18, 18.1, 18.2, 18.3, 19, 19.1, 19.2, 19.3, 20, 20.1, 20.2, 20.3, 21, 21.1, 21.2, 21.2 Edge, 21.3, 21.3 Edge
Linux Mint Debian Edition (LMDE) 1, 2, 3, 4, 5, 6
Fedora 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39
OpenSuSE 11.3, 11.4, 12.1, 12.2, 12.3, 13.1, 13.2, Leap 42.1, 42.2, 42.3, 15.0, 15.1, 15.2, 15.3, 15.4, 15.5
PCLinuxOS 2010, 2010.1, 2010.7, 2010.10, 2010.12, 2011.6, 2011.9, 2012.2, 2013.2, 2013.4, 2013.6, 2013.7, 2013.715, 2013.10, 2013.12, 2014.04, 2014.05, 2014.07, 2014.08, 2014.12, 2016.03, 2016.07, 2017.04, 2017.05, 2017.07, 2017.11, 2018.06, 2019.03, 2019.05, 2019.08, 2019.10, 2019.11, 2019.12, 2020.01, 2020.02, 2020.03, 2020.05, 2020.08, 2020.10, 2020.1015, 2021.0205, 2021.0215, 2021.08, 2021.11, 2022.01.10, 2022.04.10, 2022.04.20, 2022.07.10, 2022.11.20, 2022.11.30, 2022.12, 2023.05, 2023.07, 2023.08
Mageia 1, 2, 3, 4, 5, 5.1, 6, 6.1, 7, 7.1, 8, 9
Tails .6, .7.2, .16, .19, .20, .21, .22, .22.1, .23, 1.0, 1.0.1, 1.1, 1.1.1, 1.1.2, 1.2, 1.2.1, 1.2.2, 1.2.3, 1.3, 1.3.1, 1.3.2, 1.4, 1.4.1, 1.5, 1.5.1, 1.6, 1.7, 2.0, 2.0.1, 2.3, 2.4, 2.5, 2.6, 2.7, 2.7.1, 2.9.1, 2.10, 2.11, 2.12, 3.0, 3.0.1, 3.1, 3.2, 3.3, 3.5, 3.6, 3.6.1, 3.6.2, 3.7, 3.8, 3.9, 3.9.1, 3.10.1, 3.11, 3.12, 3.12.1, 3.13, 3.13.1, 3.13.2, 3.14, 3.14.1, 3.14.2, 3.15, 3.16, 4.0, 4.1, 4.1.1, 4.2, 4.2.2, 4.3, 4.4, 4.4.1, 4.5, 4.6, 4.7, 4.8, 4.9, 4.10, 4.11, 4.12, 4.13, 4.14, 4.15, 4.15.1, 4.16, 4.17, 4.18, 4.19, 4.20, 4.21, 4.22, 4.23, 4.24, 4.25, 4.26, 4.27, 4.28, 4.29, 5.0, 5.1, 5.1.1, 5.2, 5.3, 5.3.1, 5.4, 5.5, 5.6, 5.7, 5.8, 5.9, 5.10, 5.11, 5.12, 5.13, 5.14, 5.15.1, 5.16, 5.16.1, 5.17, 5.18, 5.19, 5.19.1, 5.20, 5.21, 5.22, 6.0
Rocky Linux 9 Series 9.0, 9.1, 9.2, 9.3
Rocky Linux 8 Series 8.4, 8.5, 8.6, 8.7, 8.8, 8.9
AlmaLinux 9 Series 9.0, 9.1, 9.2, 9.3
AlmaLinux 8 Series 8.3, 8.4, 8.5, 8.6, 8.7, 8.8, 8.9
CentOS Stream 8, 9
CentOS 8 Series 8.0, 8.1, 8.2, 8.3, (discontinued)
CentOS 7 Series 7.0, 7.1, 7.2, 7.3, 7.4, 7.5, 7.6, 7.7, 7.8, 7.9
CentOS 6 Series 6.4, 6.5, 6.6, 6.7, 6.8, 6.9, 6.10
CentOS 5 Series 5.10, 5.11, 5.11+
Scientific Linux 7 Series 7.0, 7.1, 7.2, 7.3, 7.4, 7.5, 7.6, 7.7, 7.8, (discontinued)
Scientific Linux 6 Series 6.4, 6.5, 6.6, 6.7, 6.8, 6.9, 6.10, (discontinued)
Scientific Linux 5 Series 5.10, 5.11, (discontinued)
Red Hat Enterprise Linux (RHEL) 9 Series 9.0, 9.1, 9.2, 9.3
Red Hat Enterprise Linux (RHEL) 8 Series 8.0, 8.1, 8.2, 8.3, 8.4, 8.5, 8.6, 8.7, 8.8, 8.9
Red Hat Enterprise Linux (RHEL) 7 Series 7.0, 7.1, 7.2, 7.3, 7.4, 7.5, 7.6, 7.7, 7.8, 7.9, 7 ELS+
Red Hat Enterprise Linux (RHEL) 6 Series 6.4, 6.5, 6.6, 6.7, 6.8, 6.9, 6.10, 6 ELS+
Red Hat Enterprise Linux (RHEL) 5 Series 5.10, 5.11, 5.11+
Manjaro 0.8.0, 0.8.1, 0.8.2, 0.8.3, 0.8.4, 0.8.5, 0.8.6, 0.8.7, 0.8.8, 0.8.9, 0.8.10, 0.8.11, 0.8.12, 0.8.13, 15.09, 15.12, 16.06, 16.06.1, 16.08, 16.10, 17.0, 17.1, 18.0, 18.1.0, 19.0, 20.0, 20.1, 20.2, 20.2.1, 21.0, 21.0.1, 21.0.2, 21.0.3, 21.0.4, 21.0.5, 21.0.6, 21.0.7, 21.1.0, 21.1.1, 21.1.2, 21.1.3, 21.1.4, 21.1.5, 21.1.6, 21.2.0, 21.2.1, 21.2.2, 21.2.3, 21.2.4, 21.2.5, 21.2.6, 21.3.1, 21.3.2, 21.3.3, 21.3.4, 21.3.5, 21.3.6, 21.3.7, 22.0, 22.0.1, 22.0.2, 22.0.3, 22.0.4, 22.0.5, 22.1.0, 22.1.1, 22.1.2, 22.1.3, 23.0, 23.0.1, 23.0.2, 23.0.3, 23.0.4, 23.1.0, 23.1.1, 23.1.2, 23.1.3
Kali , 1.0.1, 1.0.2, 1.0.3, 1.0.4, 1.0.5, 1.0.6, 1.0.7, 1.0.8, 1.0.9, 1.09a, 1.1.0, 1.1.0a, 2.0, 2016.1, 2016.2, 2017.1, 2017.2, 2017.3, 2018.1, 2018.2, 2018.3, 2018.4, 2019, 2019.1a, 2019.2, 2019.3, 2019.4, 2020.1, 2020.1a, 2020.1b, 2020.1, 2020.2, 2020.3, 2020.4, 2021.1, 2021.2, 2021.3, 2021.4, 2021.4a, 2022.1, 2022.2, 2022.3, 2022.4, 2023.1, 2023.2, 2023.2a, 2023.3, 2023.4, 2024.1
* BackTrack has been 'reborn' as Kali

In practice all recently released distributions are compatible.
