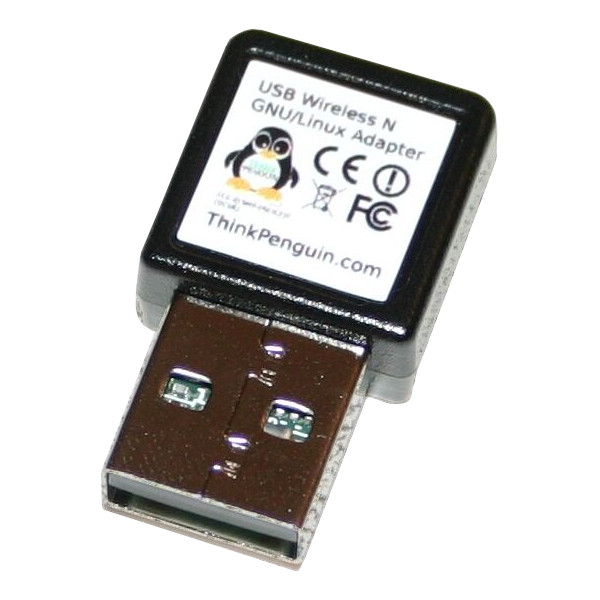

Penguin Wireless N USB Adapter for GNU / Linux (TPE-N150USB)

Penguin Wireless N USB Adapter for GNU / Linux (TPE-N150USB)
With the Penguin Wireless N USB Adapter for GNU / Linux, model TPE-N150USB, connecting to the Internet is easy. Just plug it in, connect, and surf. Genuinely Penguin friendly with all recent Linux kernels supported out of the box.

  • Experience video streaming and Internet calls with speeds up to 150Mbps

  • No dependencies on NDISWrapper, binary blobs, or proprietary drivers-firmware & works with most distributions out of the box

  • Support for most popular and libre (free) distributions

  • To learn more about FSF's Respects Your Freedom hardware certification, including certified software, visit http://www.fsf.org/ryf

  • Note: 'Mini' adapters like this work best within sight or otherwise nearer to the router, see our other longer range adapter


Fast shipping: In Europe or the United States?
Get it in just 1-5 business days!
And within 6-10 for most other major destinations world wide
Category Specification
Chipset AR9271
Kernels Supported Mainline 2.6.38+ / linux-libre 3.0+
Frequency
  • USA: 2.400 ~ 2.483GHz
  • Europe: 2.400 ~ 2.483GHz
  • Japan: 2.400 ~ 2.497GHz
  • China: 2.400 ~ 2.483GHz
Interface Universal Serial Bus (USB) revision 2.0
Supports Master Mode (/w hostapd)
Station Mode
Monitor Mode
AP Mode
IBSS Mode
Legacy (11g) operation
HT support
TX/RX 11n AMPDU aggregation
HW Encryption
Suspend/Resume
Modulation Technique
  • DSSS with CCK, DQPSK, DBPSK
  • OFDM with BPSK, QPSK, 16QAM, 64QAM
Channel Spacing 5MHz
Data Rate
  • 802.11b: 1, 2, 5.5 and 11Mbps
  • 802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
  • 802.11n:
    • 20MHz channel: 1Nss: 65Mbps @ 800GI, 72.2Mbps @ 400GI (Max.)
    • 40MHz channel: 1Nss: 135Mbps @ 800GI, 150Mbps @ 400GI (Max.)
Operating Channels
  • USA/Canada: 11 (1~11)
  • Major European Countries: 13 (1~13)
  • France: 13 (1~13)
  • Japan: 14 for 802.11b (1~13 or 14th), 13 for 802.11g (1~13)
  • China: 13 (1~13)
Power Consumption
  • For throughput Tx mode: 300mA
  • For throughput Rx mode: 280mAFor 6M continuous Tx mode: 310mA
  • For HT40 MCS0 continuous Tx mode: 310mA
  • For HT20 MCS0continuous Tx mode: 300mA
  • For HT40 MCS7 continuous Tx mode: 300mA
  • For HT20 MCS7 continuous Tx mode: 300mA
Transmit Power Settings

target power tolerance ±2dBm

  • 802.11b:
    • +18dBm
  • 802.11g:
    • +17dBm @ 6, 9, 12,18,24,36,48Mbps
    • +15dBm @ 54Mbps
  • 802.11n HT20:
    • +16dBm @ MCS 0/8
    • +16dBm @ MCS 1/9
    • +16dBm @ MCS 2/10
    • +16dBm @ MCS 3/11
    • +16dBm @ MCS 4/12
    • +16dBm @ MCS 5/13
    • +16dBm @ MCS 6/14
    • +15dBm @ MCS 7/15
  • 802.11n HT40:
    • +16dBm @ MCS 0/8
    • +16dBm @ MCS 1/9
    • +16dBm @ MCS 2/10
    • +16dBm @ MCS 3/11
    • +16dBm @ MCS 4/12
    • +16dBm @ MCS 5/13
    • +16dBm @ MCS 6/14
    • +15dBm @ MCS 7/15
Dimension 30(L)x 17(W) x 8.5(H) mm
Security
  • 64/128/152-bit WEP encryption
  • 802.1x authentication
  • AES-CCM & TKIP encryption
  • WPA/WPA2
Operation Temperature Range 0 C 40 C
Operation Distance Outdoor: with 802.11n can get about 250m (about .15 miles) in good conditions
Operating Humidity 15% ~ 95%, non-condensing
Environment-Friendly Compliance RoHS
Operation Voltage 5.0V ± 5%
Compatible With MS Windows XP/Vista/7and GNU/Linux/OpenBSD 6.3+ (maybe earlier as well).


Have questions?
E-mail support or call us at: 1-888-39-THINK (84465)
Supported distributions:

Trisquel 6.01, 7, 8
Parabola GNU/Linux 2013.04.27+
Ubuntu 11.04, 11.10, 12.04, 12.10, 13.04, 13.10, 14.04, 14.10, 15.04, 15.10, 16.04, 16.10, 17.04, 17.10, 18.04
Lubuntu 11.04, 11.10, 12.04, 12.10, 13.04, 13.10, 14.04, 14.10, 15.04, 15.10, 16.04, 16.10, 17.04, 17.10, 18.04
Peppermint Linux OS 5, 6, 7, 8
Kubuntu 11.04, 11.10, 12.04, 12.10, 13.04, 13.10, 14.04, 14.10, 15.04, 15.10, 16.04, 16.10, 17.04, 17.10, 18.04
LXLE 12.04, 12.04.3, 12.04.4, 14.04, discontinued
LinuxMint 10, 11, 12, 13, 14, 14.1, 15, 16, 17, 17.1, 17.2, 17.3, 18, 18.1, 18.2, 18.3
Fedora 16, 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 28
CentOS 7 Series 7.0, 7.1, 7.2, 7.3, 7.4, 7.5
Red Hat Enterprise Linux (RHEL) 7 Series 7.0, 7.1, 7.2, 7.3, 7.4, 7.5
Scientific Linux 7 Series 7.0, 7.1, 7.2, 7.3, 7.4, 7.5
CentOS 6 Series 6.5, 6.6, 6.7, 6.8, 6.9
Red Hat Enterprise Linux (RHEL) 6 Series 6.5, 6.6, 6.7, 6.8, 6.9, 6 ELS+
Scientific Linux 6 Series 6.5, 6.6, 6.7, 6.8, 6.9
OpenSuSE 12.3, 13.1, 13.2, Leap 42.1, 42.2, 42.3
Zorin OS 6.0, 6.1, 6.2, 7, 7.1, 8, 8.1, 9, 9.1, 10, 11, 12, 12.1, 12.2, 12.3
Tails .20, .21, .22, .22.1, .23, 1.0, 1.0.1, 1.1, 1.1.1, 1.1.2, 1.2, 1.2.1, 1.2.2, 1.2.3, 1.3, 1.3.1, 1.3.2, 1.4, 1.4.1, 1.5, 1.5.1, 1.6, 1.7, 2.0, 2.0.1, 2.3, 2.4, 2.5, 2.6, 2.7, 2.7.1, 2.9.1, 2.10, 2.11, 2.12, 3.0, 3.0.1, 3.1, 3.2, 3.3, 3.5, 3.6, 3.6.1, 3.6.2
PCLinuxOS 2013.7, 2013.715, 2013.10, 2013.12, 2014.04, 2014.05, 2014.07, 2014.08, 2014.12, 2016.03, 2016.07, 2017.04, 2017.05, 2017.07, 2017.11
Mageia 1, 2, 3, 4, 5, 5.1, 6
Arch 2011.08.19, 2012.07.15, 2012.08.04, 2012.09.07, 2012.10.06, 2012.11.01, 2012.12.01, 2013.01.04, 2013.02.01, 2013.03.01, 2013.04.01, 2013.05.01, 2013.06.01, 2013.07.01, 2013.08.01, 2013.09.01, 2013.10.01, 2013.11.01, 2013.12.01, 2014.01.05, 2014.02.01, 2014.03.01, 2014.04.01, 2014.05.01, 2014.06.01, 2014.07.03, 2014.08.01, 2014.09.03, 2014.10.01, 2014.11.01, 2014.12.01, 2015.01.01, 2015.02.01, 2015.03.01, 2015.04.01, 2015.05.01, 2015.06.01, 2015.07.01, 2015.08.01, 2015.09.01, 2015.10.01, 2015.11.01, 2015.12.01, 2016.01.01, 2016.02.01, 2016.03.01, 2016.04.01, 2016.05.01, 2016.06.01, 2016.07.01, 2016.08.01, 2016.09.03, 2016.10.01, 2016.11.01, 2016.12.01, 2017.01.01, 2017.02.01, 2017.03.01, 2017.04.01, 2017.05.01, 2017.06.01, 2017.07.01, 2017.08.01, 2017.09.01, 2017.10.01, 2017.11.01, 2017.12.01, 2018.01.01, 2018.02.01, 2018.03.01, 2018.04.01
Kali 1.0.0, 1.0.1, 1.0.2, 1.0.3, 1.0.4, 1.0.5, 1.0.6, 1.0.7, 1.0.8, 1.0.9, 1.09a, 1.1.0, 1.1.0a, 2.0, 2016.1, 2016.2, 2017.1, 2017.2, 2017.3, 2018.1
* Raspbian 2013-07-26 Wheezy+
* BackTrack has been 'reborn' as Kali

Most other recently released distributions are also compatible.

Debian 7, 8, & 9 require the installation of firmware. See our support documentation for details.

The Raspberry Pi may require additional power for the adapter to work.

Get inexpensive hassle-free repair, replacement, and support for your device. Whether it's been damaged or you just can't figure out why it's not working we'll be here to help. Purchase up to 3 years of total support and protection.

Don't forget an extension cable. If your ports are too close together there may not be enough room for connecting components. Pick up a short 7" / 177 mm USB extension cable with your order. See picture for details.
